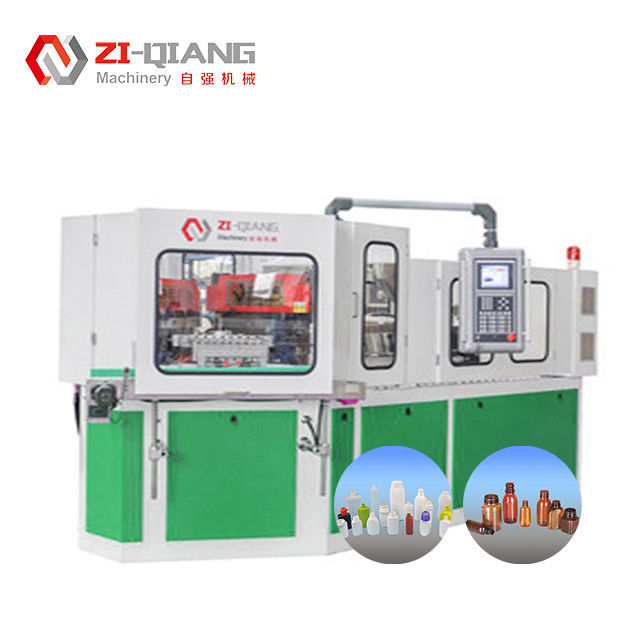

| ชื่อแบรนด์: | ZI QIANG |
| เลขรุ่น: | ZQ 60 |
| ขั้นต่ำ: | 1 |
| ราคา: | 40000 USD |
| เงื่อนไขการจ่ายเงิน: | ที/ที |
|
Item |
Unit |
ZQ60 |
|
Injection System |
||
|
Screw Diameter |
mm |
45 |
|
Screw L/D |
% |
22:1 |
|
Injection weight |
g |
260 |
|
Heating power |
KW |
14 |
|
Number of barrel zone |
|
3+N |
|
Injection stroke |
mm |
160 |
|
Clamping System |
||
|
Clamping force of injection |
KN |
600 |
|
Opening stroke for injection |
mm |
140 |
|
Clamping force of blowing |
KN |
100 |
|
Opening stroke for blowing |
mm |
140 |
|
Lifing height of rotary table |
mm |
70 |
|
Mould |
||
|
Max.Platen size(L*W) |
mm |
600*390 |
|
Mold thickness |
mm |
240 |
|
Dia.of bottle |
mm |
120 |
|
Bottle height |
mm |
220 |
|
Suitable bottle height |
mm |
1-1000 |
|
Stripping stroke |
mm |
230 |
|
Hydraulic system |
||
|
Hydraulic Pressure |
Map |
14 |
|
Motor power |
KW |
22 |
|
Dry cycle |
S |
4 |
|
Total Power |
KW |
37 |
|
Operating power |
% |
52-70 |
|
Others |
||
|
Min.Air pressure of compressed air |
MPa |
0.7-1.2 |
|
Compressed air capacity |
M³/min |
0.7 |
|
Water flowage |
M³/h |
4 |
|
Cooling water pressure |
MPa |
0.3-0.4 |
|
Dimension(L*W*H) |
M |
3.5*1.4*1.8 |
|
Net weight |
Ton |
5 |
|
