| ชื่อแบรนด์: | ZIQIANG |

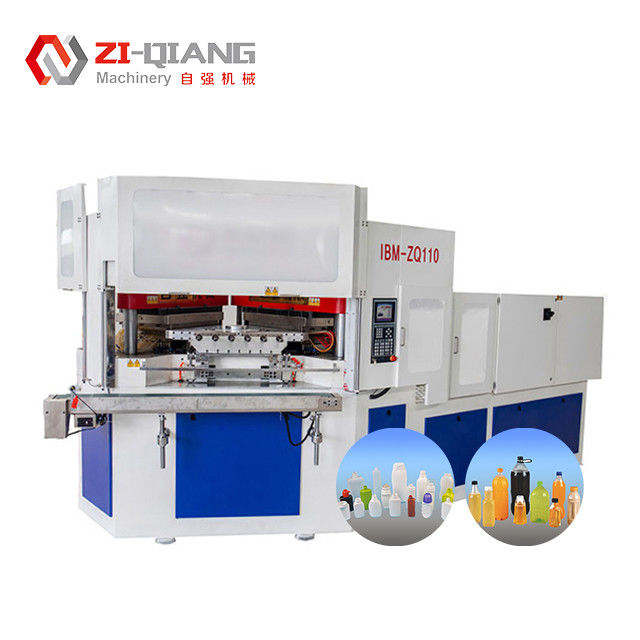

| เลขรุ่น: | ZQ110 |
| ขั้นต่ำ: | 1 |
| ราคา: | 95000USD |
| เงื่อนไขการจ่ายเงิน: | t/t |
| Attribute | Value |
|---|---|
| Warranty | 1 year |
| Injection Unit | Single/Double |
| Model No | IBM35D |
| Screw Diameter | 40mm |
| Machine Appearance Color | Customization |
| Head Heating Power | 5.7kw |
| Application | Household Products / Food Packaging |
| Frequency | 50/60Hz |
| Controlling System | Act Technologies |
| Voltage | Customized According To Customer Needs |
| Logo Customized | Yes |
| Hydraulic Pressure | 14 Map |
| Motor Power | 35KW |
| Operating Power | 52-70% |

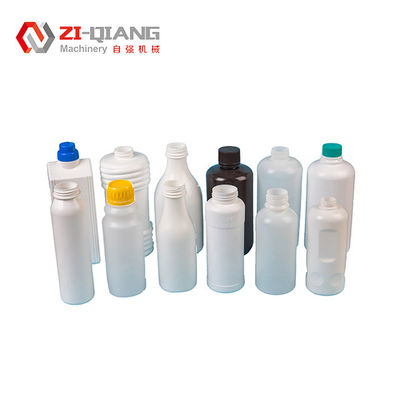

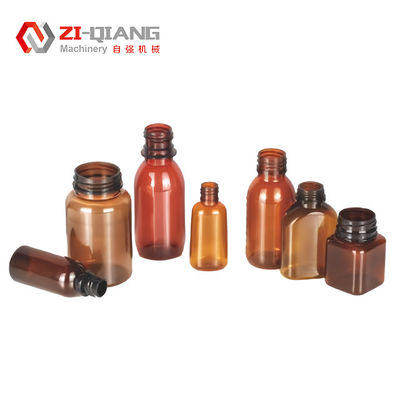

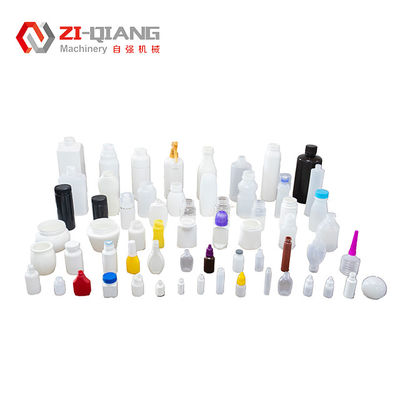

| Applications | 5ml to 1L small plastic bottles |
| Injection System | ||
|---|---|---|
| Screw Diameter | mm | 65 |
| Screw L/D | % | 22:1 |
| Injection weight | g | 415 |
| Heating power | KW | 22 |
| Number of barrel zone | 6+N | |
| Injection stroke | mm | 200 |
| Clamping System | ||
|---|---|---|
| Clamping force of injection | KN | 1100 |
| Opening stroke for injection | mm | 140 |
| Clamping force of blowing | KN | 150 |
| Opening stroke for blowing | mm | 140 |
| Lifing height of rotary table | mm | 70 |

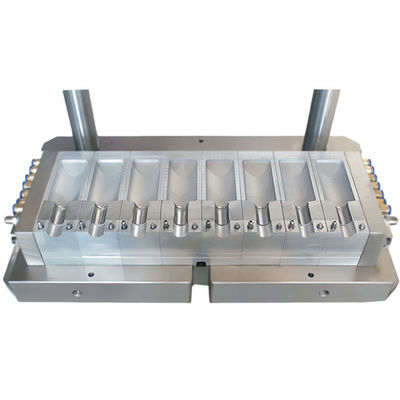

| Mould | ||
|---|---|---|
| Max.Platen size(L*W) | mm | 1100*460 |
| Mold thickness | mm | 280 |
| Dia.of bottle | mm | 120 |
| Bottle height | mm | 220 |
| Suitable bottle height | mm | 1-1000 |
| Stripping stroke | mm | 260 |
| Hydraulic system | ||
|---|---|---|
| Hydraulic Pressure | Map | 14 |
| Motor power | KW | 37+37 |
| Dry cycle | S | 4 |
| Total Power | KW | 90 |
| Operating power | % | 52-70 |
| Others | ||
|---|---|---|
| Min.Air pressure of compressed air | MPa | 0.7-1.2 |
| Compressed air capacity | M³/min | 0.7 |
| Water flowage | M³/h | 4 |
| Cooling water pressure | MPa | 0.3-0.4 |
| Dimension(L*W*H) | M | 5*1.8*2.2 |
| Net weight | Ton | 15 |
|
